| Model Name | CE-CF0530 |
| Power supply | AC100~264V/ 50Hz |
| Voltage Test Range | DC1V-5V |
| Charging current range | 1~30A±0.5%FS+0.1A@30A continuously adjustable |
| Charging mode | Constant current, constant voltage |
| Discharge current range | 0~30A continuously adjustable |
| Discharging mode | Constant current, constant power |
| Voltage accuracy/Resolution | +0.2%FS+5Mv@5V; resolution: 0.001V |

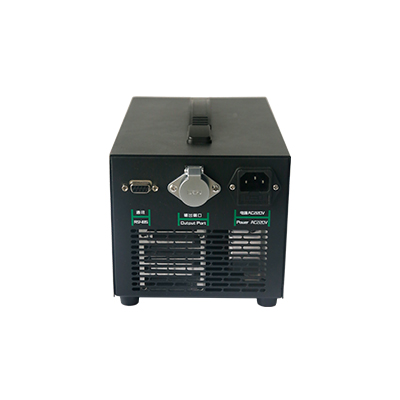

| communication interface | RS485/USB |
| Working temperature | -10~65℃ |
| Storage temperature | -40~75℃ |
| protective measure |
Input under-voltage, over-voltage protection, battery reverse polarity protection, output over-current protection, equipment over-temperature protection, etc. |
| Heat dissipation | Air cooling |
Overview

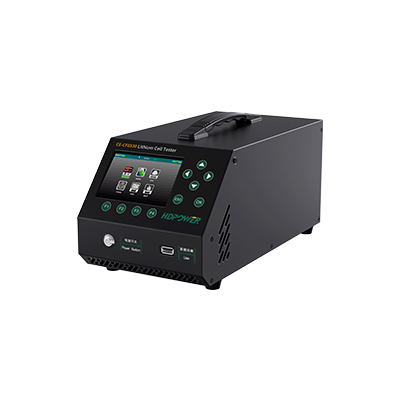

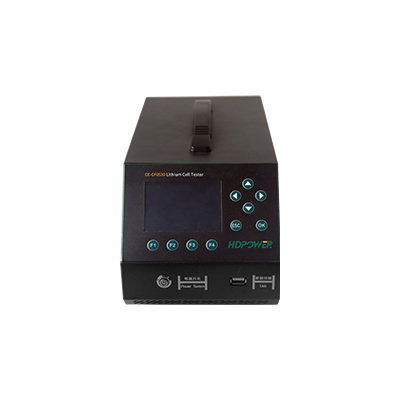

CE-CF0530 adopts high-frequency power supply design to realize rapid charging and discharging maintenance of lithium battery cell. To be with battery cell capacity screening, SOC adjustment function, it is a high cost-effective cell maintenance equipment.
Features
• Various kind of maintenance modes:
Industry leading charging& discharging modes as constant current/voltage for charging, constant current/power for discharging.
• Wide application field:
covers the maintenance of mainstream lithium batteries in the market.Support voltage &capacity termination,and power calculation.
• High performance testing:
Voltage and current sampling line isolation design for more accurate testing, the charging&discharging current is adjustable to realize efficient maintenance.
• Safety operation:
Provide various testing termination thresholds to avoid over-overcharging & discharging, ensuring the safety of battery and testing equipment.

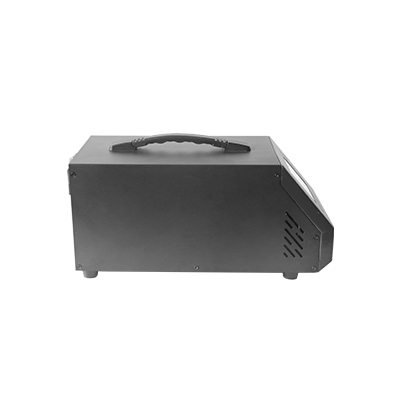

• Compact size:
Small size and light weight, easy to carry.
